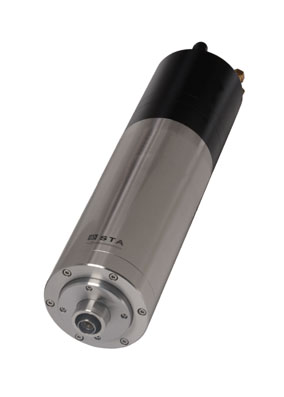

SP10-3035S-A4
Technical Specifications
| MOUNT DIA | mm | 100 |
|---|---|---|
| SPEED | R.P.M | Max. 30,000 |
| MAX FREQUENCY | Hz | Max. 1,000 |
| VOLTAGE | V | 220/380 |
| OUTPUT | kW | 3.5 |
| TORQUE | Nm | 1.1 |
| CURRENT | A | 13.2/7.6 |
| MOTOR POLES | P | 4 |
| COLLET / TOOL HOLDER | HSK E32 | |
| TOOL CHANGE | Auto Tool Change | |
| TOOL CLAMPING RANGE | mm | 1 ~ 13 |
| COOLING SYSTEM | Water / Oil | |
| BEARING | Pcs | 4 |
| HOUSING DIAMETER | Ø | 100 |
| WEIGHT | Kg | 15.0 |
| MOTOR PROTECTION | Thermistor(P.T.C) | |
| SEALING | Air | |
| INNER TAPER RUN-OUT | μ | < 2 |
| LUBRICATION | ||
| 사용용도 | ||

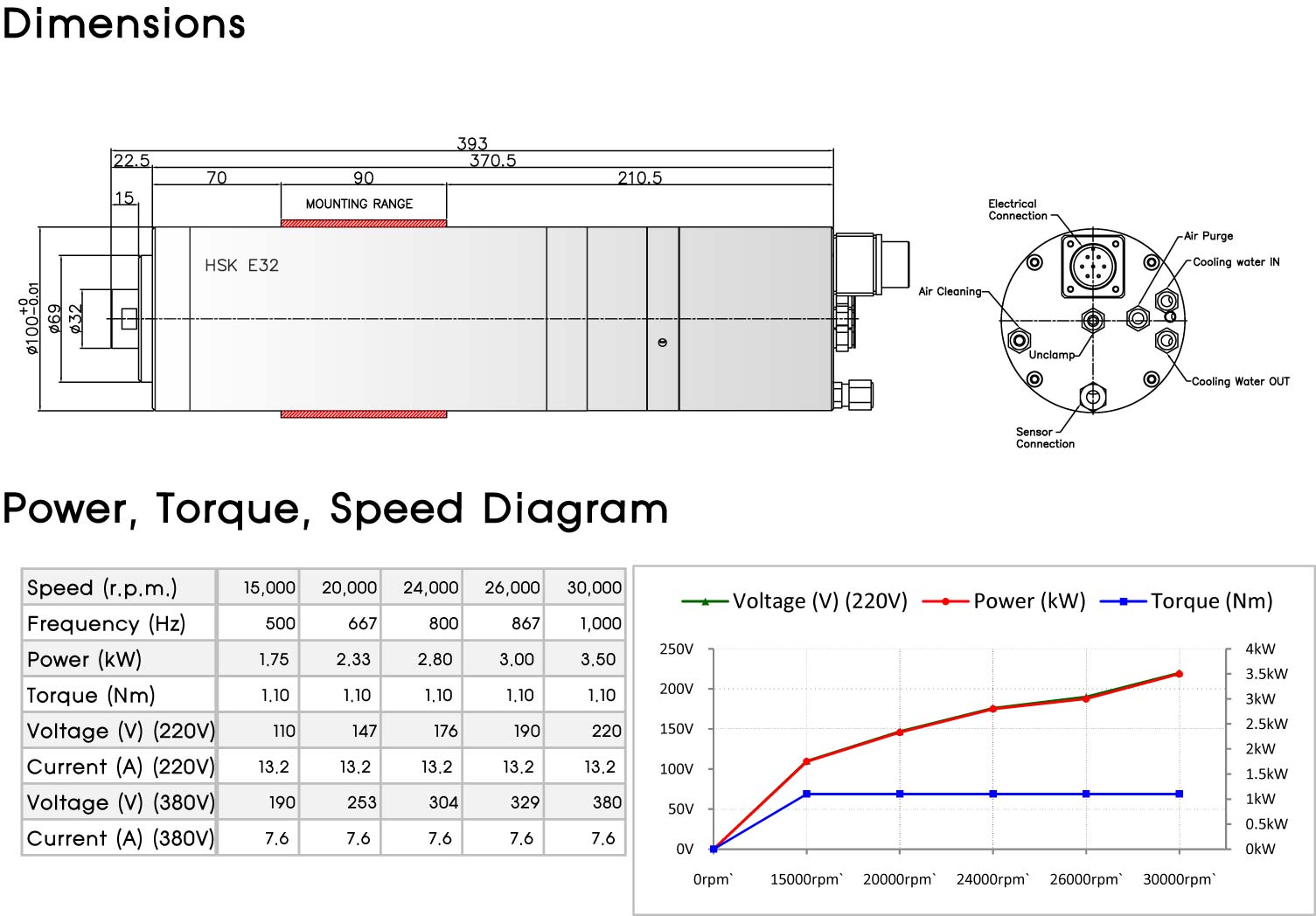

DETAILS
