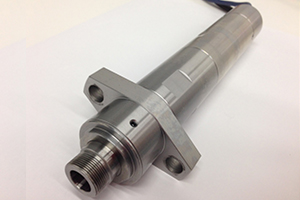

DL40F-일본제품(BLDC,공냉식,소형)
Technical Specifications
| MOUNT DIA | mm | 40 |
|---|---|---|
| SPEED | R.P.M | Max. 40,000 |
| MAX FREQUENCY | Hz | Max. 전용컨트롤러 |
| VOLTAGE | V | |
| OUTPUT | kW | 1.2 |
| TORQUE | Nm | 0.3 |
| CURRENT | A | |
| MOTOR POLES | P | |
| COLLET / TOOL HOLDER | 전용콜렛 | |
| TOOL CHANGE | Manual tool change | |
| TOOL CLAMPING RANGE | mm | 1.0~8.0 |
| COOLING SYSTEM | 공냉식 | |
| BEARING | Pcs | |
| HOUSING DIAMETER | Ø | 40 (Flange type) |
| WEIGHT | Kg | |
| MOTOR PROTECTION | ||
| SEALING | ||
| INNER TAPER RUN-OUT | μ | 2 |
| LUBRICATION | ||
| 사용용도 | ||
