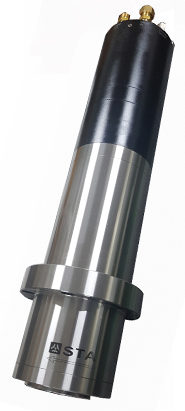

SP8F-4033-A4 Encoder
Technical Specifications
| MOUNT DIA | mm | 80 |
|---|---|---|
| SPEED | R.P.M | Max. 40,000 |
| MAX FREQUENCY | Hz | Max. 1,334 |
| VOLTAGE | V | 220/380 |
| OUTPUT | kW | 3.3 |
| TORQUE | Nm | 1 |
| CURRENT | A | 13.1 / 7.6 |
| MOTOR POLES | P | 4 |
| COLLET / TOOL HOLDER | HSK E25 (Encoder) | |
| TOOL CHANGE | Auto Tool Change | |
| TOOL CLAMPING RANGE | mm | |
| COOLING SYSTEM | Oil or Water | |
| BEARING | Pcs | 4 |
| HOUSING DIAMETER | Ø | 80 Flange Type |
| WEIGHT | Kg | 11 |
| MOTOR PROTECTION | P.T.C | |
| SEALING | Air | |
| INNER TAPER RUN-OUT | μ | 2 |
| LUBRICATION | Grease | |
| 사용용도 | ||

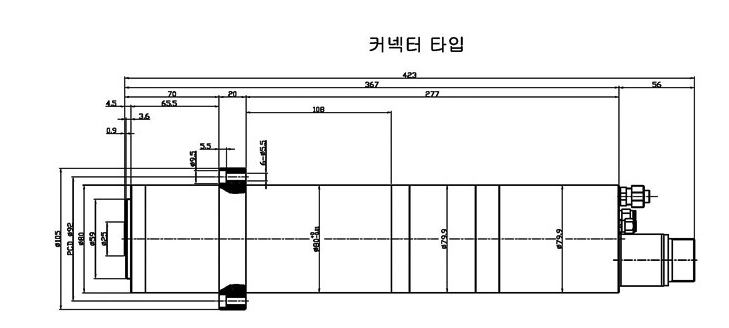

DETAILS
